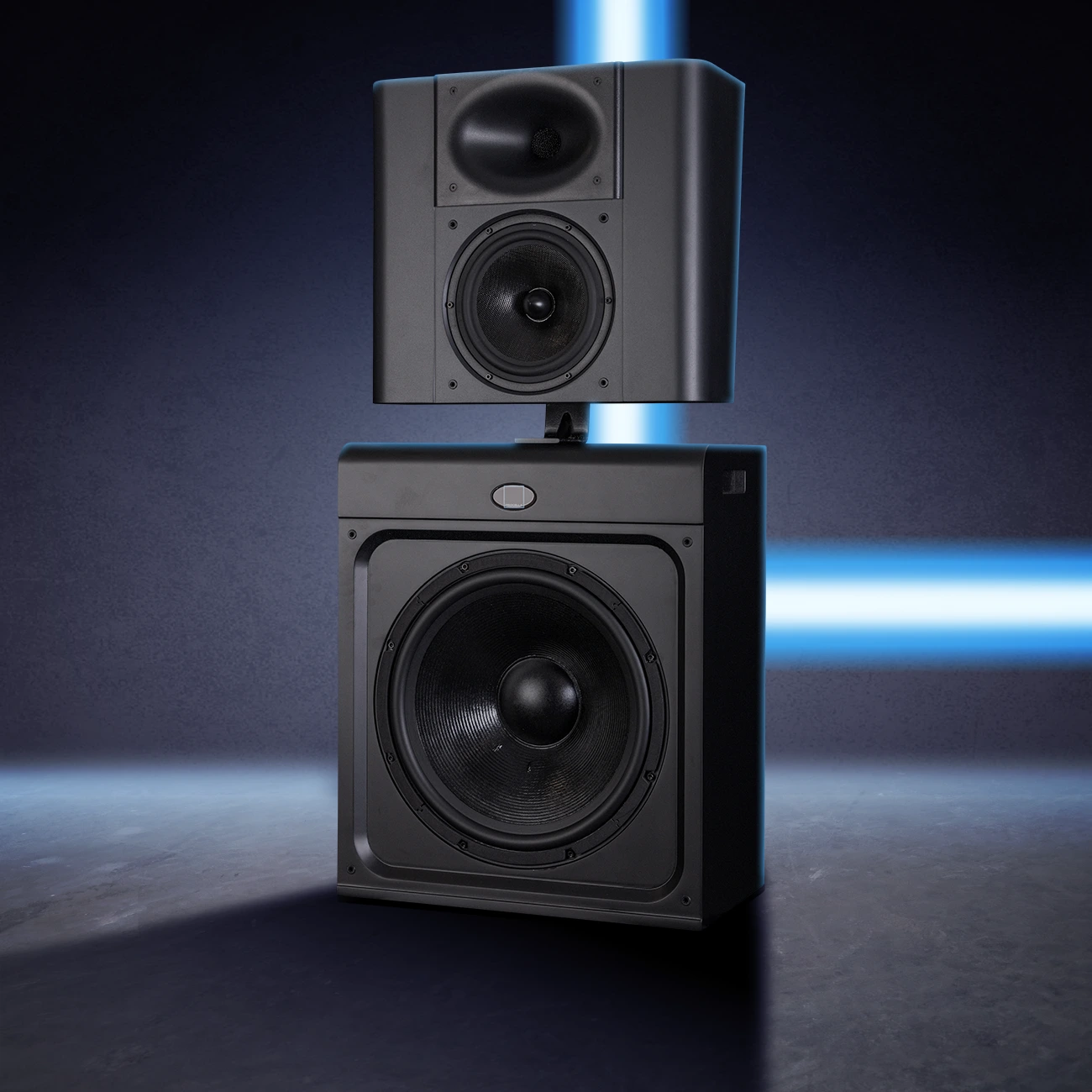

Procella P815 front without cover

P815

We took a leap of faith and decided to use Procella speakers in a very critical home cinema environment. The installation utilized three P815, two P18, three P10 and six P8 speakers. What an amazing surprise.  You owe to yourself and your clients to put these speakers on your very short list. Excellent!
DENNIS ERSKINE, The Erskine Group

The P815 is THX Approved for integration into professional rooms, including THX Certified Screening Rooms and THX pm3 (professional Mixing, Monitoring and Mastering) studios..

Description

Audiophile accuracy and cinema impact make Procella’s P815 the ultimate home cinema/screening room main speaker
CE PRO BEST AWARD

The P815 is the direct descendant of the original DTS preview theater main loudspeaker. This reference-quality, precision full-range speaker is designed for large home cinemas, studios, screening rooms and small cinemas. It combines the P8 reference loudspeaker with the P15Si 15” low-frequency module to produce THX cinema reference levels at an incredible 8 meters (over 26 feet). The P815 requires external biamplification. The Procella DA-06DSP two-channel power amplifier provides both DSP crossover and amplification for the P8 mid/high-frequency module and the P15Si low-frequency module. The amplifier delivers 600W continuous to the P8 and 1,200W continuous to the P15Si. From revealing the smallest details to producing the awesome impact of a full-scale 96/24 recording or film soundtrack, with the P815 you become one with the performance. Winner of the prestigious CEPro BEST Award from CE Pro magazine and the Exc!te Award from Custom Retailer magazine, the loudspeaker is THX Approved for integration into professional rooms, including THX Certified Screening Rooms and THX pm3 (professional Mixing, Monitoring and Mastering) studios..

Specifications

Amplifier

external, option DA-06

maximum SPL

Free-standing 122dB continuous, 126dB peak, in baffle wall 126dB continuous, 132dB peak

frequency respons

-3dB points 40Hz and 20kHz

dispersion pattern

-6dB Constant directivity: 80°H x 50°V from 1.5kHz

crossover

4th Order Linkwitz-Reilly 1.6 kHz and 150Hz

components

High Frequency 1.5” compression driver with a Polyester diaphragm on (P8) a Procella designed elliptical, Low Frequency 15” driver with 75mm voice coil in 92 (LF815) litre sealed box, Midrange 8” high output driver with 40mm (P8) voice coil in 15 litre sealed box

connectivity

2 pair gold-plated binding posts

Construction

Void free MDF internally cross braced Semi matte textured black paint finish

dimensions and weight

HxWxD 40.6" x 18.9" x 11.0" / 1030 x 480 x 280 mm / 86.4 Lbs / 39.2 Kg

shipping carton

P8 HxWxD 19.75" x 23.6" x 12" / 500 x 600 x 300 / 37.5 Lbs / 16.9 Kg – P15Si HxWxD 23.6" x 28.4" x 15.75" / 600 x 720 x 400 mm / 63.9 Lbs / 29 Kg

Included

connecting bracket, Damper feet, Protective grilles

assembly

Sweden 100% QC testing

P815

pdf

P815 Tech Sheet v3.3 A4

Size : 503.69 kb
pdf

P815 Tech Sheet v3.3

Size : 604.58 kb
pdf

P815_VUE

Size : 101.93 kb
DWG

P815_VUE

Size : 146.06 kb
