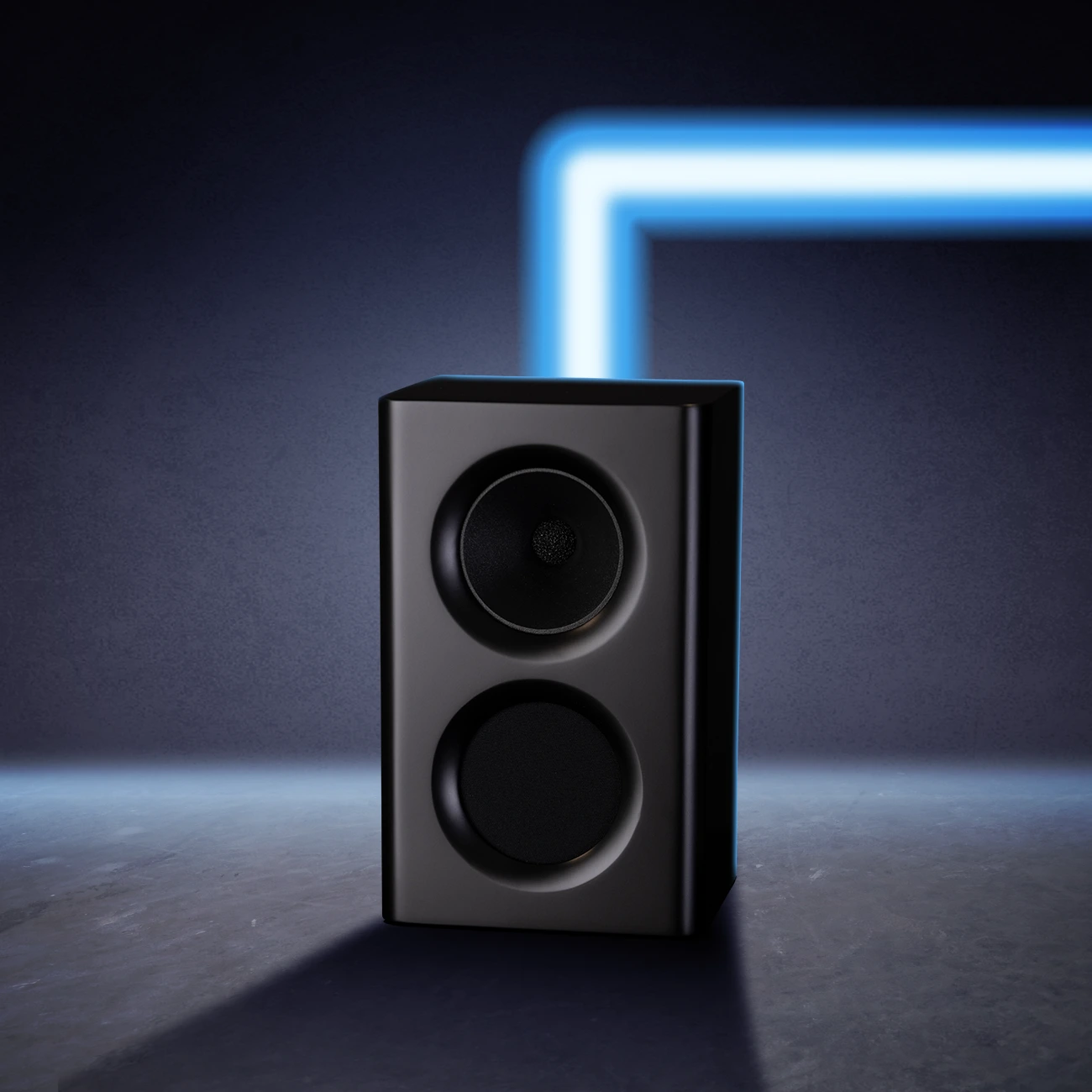

Procella P5 black front view without cover

P5

The new P5 really is an extraordinary speaker! It is almost unbelievable when you are listening to P5 to imagine the size of them, because they sound so much bigger. The new P12 is a perfect companion since it sounds very good and is very easy to install in most rooms.
MARCUS, The Rock Hemmabio

The P5 delivers the full dynamic range experience to smaller rooms and rooms with multiple surrounds and height speakers.

Description

Delivering Procella performance with a new look and feel, the P5 delivers the full dynamic range experience to smaller rooms and rooms with multiple surrounds and height speakers. Like its larger brothers, the loudspeaker sets the standard for output and dynamic range in its size and price class. Its compact cabinet can be oriented either vertically or horizontally, even mounted on the ceiling, thanks to its 80 degree circular waveguide and 1” pro compression driver. A true high-output loudspeaker, the P5 gives can be used as a main, surround, or height channel speaker.You even have a choice of black or white finishes, both with a matching removable grille that is held in place magnetically. Match the P5 with the P15A subwoofer for Procella at its most affordable!

Specifications

power handling

Continuous 75 Watt, Peak 250 Watt

sensitivity

1m/1W 91dB

maximum SPL

free-standing 107dB continuous 113dB peak, in wall 113dB continuous 119dB peak

frequency respons

-3dB points 90Hz and 20kHz

dispersion pattern

-6dB Constant directivity, 80° circular from 2.5kHz

crossover

Asymmetrical and phase aligned 2.2kHz, BSC

connectivity

Gold plated large diameter binding posts

wall mount

Inserts for VESA 100 bracket, Keyholes provided for both vertical and horizontal mounting

finish

Black semi-matte painted finish, White semi-matte painted finish

dimensions and weight

HxWxD 12” x 7.5” x 6.7” / 304 x 190 x 170 mm, 10.6 Lbs / 4.8 Kg

shipping carton

HxWxD 15.35" x 11.4" x 10.25" / 390 x 290 x 260 mm / 12.3 Lbs / 5.6 Kg

assembly

Sweden 100% QC testing

P5

pdf

P5 Tech Sheet v1.3

Size : 768.48 kb
pdf

P5 Tech Sheet v1.3 A4

Size : 769.01 kb
DWG

P5_ext_dim

Size : 94.49 kb
pdf

P5_ext_dim

Size : 92.96 kb
pdf

Procella P5 User V1.2

Size : 117.71 kb
